An R package providing a simple interface to access and apply crosswalks.
Overview
This package provides a consistent API and standardized versions of crosswalks to enable consistent approaches that work across different geography and year combinations. The package also facilitates interpolation–that is, adjusting source geography/year values by their crosswalk weights and translating these values to the desired target geography/year–including diagnostics of the joins between source data and crosswalks.
The package sources crosswalks from:
- Geocorr 2022 (Missouri Census Data Center) - for same-year crosswalks between geographies
- IPUMS NHGIS - for inter-temporal crosswalks (across different census years)
- CT Data Collaborative - for Connecticut 2020→2022 crosswalks (planning region changes)
Why Use crosswalk?
- Programmatic access: No more manual downloads from web interfaces
- Standardized output: Consistent column names across all crosswalk sources
- Metadata tracking: Full provenance of crosswalks stored as attributes
- Crosswalk chaining: Automatic chaining when multiple crosswalks are required
- Local caching: Reproducible workflows with locally-cached crosswalks for speed
Installation
# Install from GitHub
renv::install("UI-Research/crosswalk")
#> # Downloading packages -------------------------------------------------------
#> - Downloading crosswalk 0.0.0.9001 from GitHub ... OK [95.7 Kb in 0.54s]
#> Successfully downloaded 1 package in 1 second.
#>
#> The following package(s) will be installed:
#> - crosswalk [UI-Research/crosswalk]
#> These packages will be installed into "C:/Users/wcurrangroome/AppData/Local/Temp/RtmpkTRpSB/temp_libpath1dfc460a4888".
#>
#> # Installing packages --------------------------------------------------------
#> - Installing crosswalk 0.0.0.9001 ... OK [built from source and cached in 2.1s]
#> Successfully installed 1 package in 2.4 seconds.Overview
First we obtain a crosswalk and apply it to our data:
library(crosswalk)
library(dplyr)
library(stringr)
library(sf)
source_data = tidycensus::get_acs(
year = 2023,
geography = "zcta",
output = "wide",
variables = c(below_poverty_level = "B17001_002")) %>%
dplyr::select(
source_geoid = GEOID,
count_below_poverty_level = below_poverty_levelE)
# Get a crosswalk from ZCTAs to PUMAs (same year, uses Geocorr (2022))
zcta_puma_crosswalk <- get_crosswalk(
source_geography = "zcta",
target_geography = "puma22",
weight = "population")
# Apply the crosswalk to your data
crosswalked_data <- crosswalk_data(
data = source_data,
crosswalk = zcta_puma_crosswalk)
## Or in a single step
crosswalked_data = crosswalk_data(
data = source_data,
source_geography = "zcta",
target_geography = "puma22",
weight = "population")What does the crosswalk(s) reflect and how was it sourced?
attr(crosswalked_data, "crosswalk_metadata")
#> $call_parameters
#> $call_parameters$source_geography
#> [1] "zcta"
#>
#> $call_parameters$target_geography
#> [1] "puma22"
#>
#> $call_parameters$source_year
#> NULL
#>
#> $call_parameters$target_year
#> NULL
#>
#> $call_parameters$weight
#> [1] "population"
#>
#> $call_parameters$cache
#> NULL
#>
#>
#> $data_source
#> [1] "geocorr"
#>
#> $data_source_full_name
#> [1] "Geocorr 2022 (Missouri Census Data Center)"
#>
#> $download_url
#> NULL
#>
#> $api_endpoint
#> [1] "https://mcdc.missouri.edu/cgi-bin/broker"
#>
#> $documentation_url
#> [1] "https://mcdc.missouri.edu/applications/geocorr2022.html"
#>
#> $citation_url
#> NULL
#>
#> $github_repository
#> NULL
#>
#> $source_geography
#> [1] "zcta"
#>
#> $source_geography_standardized
#> NULL
#>
#> $target_geography
#> [1] "puma22"
#>
#> $target_geography_standardized
#> NULL
#>
#> $source_year
#> NULL
#>
#> $target_year
#> NULL
#>
#> $reference_year
#> [1] "2022"
#>
#> $weighting_variable
#> [1] "population"
#>
#> $state_coverage
#> NULL
#>
#> $notes
#> NULL
#>
#> $retrieved_at
#> [1] "2026-02-02 13:20:20 EST"
#>
#> $cached
#> [1] FALSE
#>
#> $cache_path
#> NULL
#>
#> $read_from_cache
#> NULL
#>
#> $is_multi_step
#> [1] FALSE
#>
#> $crosswalk_package_version
#> [1] "0.0.0.9001"How well did the crosswalk join to our source data?
## look at all the characteristics of the join(s) between the source data
## and the crosswalks
join_quality = attr(crosswalked_data, "join_quality")
## what share of records in the source data do not join to a crosswalk and
## thus are dropped during the crosswalking process?
join_quality$pct_data_unmatched
#> [1] 0.4234277
## zctas aren't nested within states, otherwise join_quality$state_analysis_data
## would help us to ID whether non-joining source data were clustered within one
## or a few states. instead we can join to spatial data to diagnose further:
zctas_sf = tigris::zctas(year = 2023)
#> | | | 0% | | | 1% | |= | 1% | |= | 2% | |== | 2% | |== | 3% | |== | 4% | |=== | 4% | |=== | 5% | |==== | 5% | |==== | 6% | |===== | 6% | |===== | 7% | |===== | 8% | |====== | 8% | |====== | 9% | |======= | 9% | |======= | 10% | |======= | 11% | |======== | 11% | |======== | 12% | |========= | 12% | |========= | 13% | |========= | 14% | |========== | 14% | |========== | 15% | |=========== | 15% | |=========== | 16% | |============ | 16% | |============ | 17% | |============ | 18% | |============= | 18% | |============= | 19% | |============== | 19% | |============== | 20% | |============== | 21% | |=============== | 21% | |=============== | 22% | |================ | 22% | |================ | 23% | |================ | 24% | |================= | 24% | |================= | 25% | |================== | 25% | |================== | 26% | |=================== | 26% | |=================== | 27% | |=================== | 28% | |==================== | 28% | |==================== | 29% | |===================== | 29% | |===================== | 30% | |===================== | 31% | |====================== | 31% | |====================== | 32% | |======================= | 32% | |======================= | 33% | |======================= | 34% | |======================== | 34% | |======================== | 35% | |========================= | 35% | |========================= | 36% | |========================== | 36% | |========================== | 37% | |========================== | 38% | |=========================== | 38% | |=========================== | 39% | |============================ | 39% | |============================ | 40% | |============================ | 41% | |============================= | 41% | |============================= | 42% | |============================== | 42% | |============================== | 43% | |============================== | 44% | |=============================== | 44% | |=============================== | 45% | |================================ | 45% | |================================ | 46% | |================================= | 46% | |================================= | 47% | |================================= | 48% | |================================== | 48% | |================================== | 49% | |=================================== | 49% | |=================================== | 50% | |=================================== | 51% | |==================================== | 51% | |==================================== | 52% | |===================================== | 52% | |===================================== | 53% | |===================================== | 54% | |====================================== | 54% | |====================================== | 55% | |======================================= | 55% | |======================================= | 56% | |======================================== | 56% | |======================================== | 57% | |======================================== | 58% | |========================================= | 58% | |========================================= | 59% | |========================================== | 59% | |========================================== | 60% | |========================================== | 61% | |=========================================== | 61% | |=========================================== | 62% | |============================================ | 62% | |============================================ | 63% | |============================================ | 64% | |============================================= | 64% | |============================================= | 65% | |============================================== | 65% | |============================================== | 66% | |=============================================== | 66% | |=============================================== | 67% | |=============================================== | 68% | |================================================ | 68% | |================================================ | 69% | |================================================= | 69% | |================================================= | 70% | |================================================= | 71% | |================================================== | 71% | |================================================== | 72% | |=================================================== | 72% | |=================================================== | 73% | |=================================================== | 74% | |==================================================== | 74% | |==================================================== | 75% | |===================================================== | 75% | |===================================================== | 76% | |====================================================== | 76% | |====================================================== | 77% | |====================================================== | 78% | |======================================================= | 78% | |======================================================= | 79% | |======================================================== | 79% | |======================================================== | 80% | |======================================================== | 81% | |========================================================= | 81% | |========================================================= | 82% | |========================================================== | 82% | |========================================================== | 83% | |========================================================== | 84% | |=========================================================== | 84% | |=========================================================== | 85% | |============================================================ | 85% | |============================================================ | 86% | |============================================================= | 86% | |============================================================= | 87% | |============================================================= | 88% | |============================================================== | 88% | |============================================================== | 89% | |=============================================================== | 89% | |=============================================================== | 90% | |=============================================================== | 91% | |================================================================ | 91% | |================================================================ | 92% | |================================================================= | 92% | |================================================================= | 93% | |================================================================= | 94% | |================================================================== | 94% | |================================================================== | 95% | |=================================================================== | 95% | |=================================================================== | 96% | |==================================================================== | 96% | |==================================================================== | 97% | |==================================================================== | 98% | |===================================================================== | 98% | |===================================================================== | 99% | |======================================================================| 99% | |======================================================================| 100%
states_sf = tigris::states(year = 2023, cb = TRUE)
#> | | | 0% | |= | 1% | |= | 2% | |== | 3% | |== | 4% | |=== | 4% | |==== | 5% | |==== | 6% | |===== | 7% | |===== | 8% | |====== | 8% | |====== | 9% | |======= | 10% | |======= | 11% | |======== | 11% | |======== | 12% | |========= | 13% | |========== | 14% | |========== | 15% | |=========== | 15% | |=========== | 16% | |============ | 17% | |============ | 18% | |============= | 18% | |============= | 19% | |============== | 20% | |============== | 21% | |=============== | 21% | |=============== | 22% | |================ | 22% | |================ | 23% | |================= | 24% | |================= | 25% | |================== | 25% | |================== | 26% | |=================== | 27% | |=================== | 28% | |==================== | 28% | |==================== | 29% | |===================== | 30% | |====================== | 31% | |====================== | 32% | |======================= | 32% | |======================= | 33% | |======================== | 34% | |======================== | 35% | |========================= | 35% | |========================= | 36% | |========================== | 37% | |========================== | 38% | |=========================== | 38% | |=========================== | 39% | |============================ | 39% | |============================ | 40% | |============================= | 41% | |============================= | 42% | |============================== | 42% | |============================== | 43% | |=============================== | 44% | |=============================== | 45% | |================================ | 45% | |================================ | 46% | |================================= | 47% | |================================= | 48% | |================================== | 48% | |================================== | 49% | |=================================== | 49% | |=================================== | 50% | |==================================== | 51% | |==================================== | 52% | |===================================== | 52% | |===================================== | 53% | |====================================== | 54% | |====================================== | 55% | |======================================= | 55% | |======================================= | 56% | |======================================== | 57% | |========================================= | 58% | |========================================= | 59% | |========================================== | 59% | |========================================== | 60% | |=========================================== | 61% | |=========================================== | 62% | |============================================ | 62% | |============================================ | 63% | |============================================= | 64% | |============================================= | 65% | |============================================== | 65% | |============================================== | 66% | |=============================================== | 66% | |=============================================== | 67% | |================================================ | 68% | |================================================ | 69% | |================================================= | 70% | |================================================= | 71% | |================================================== | 71% | |================================================== | 72% | |=================================================== | 73% | |=================================================== | 74% | |==================================================== | 74% | |==================================================== | 75% | |===================================================== | 75% | |===================================================== | 76% | |====================================================== | 77% | |====================================================== | 78% | |======================================================= | 78% | |======================================================= | 79% | |======================================================== | 80% | |======================================================== | 81% | |========================================================= | 81% | |========================================================= | 82% | |========================================================== | 83% | |=========================================================== | 84% | |=========================================================== | 85% | |============================================================ | 85% | |============================================================ | 86% | |============================================================= | 87% | |============================================================= | 88% | |============================================================== | 88% | |============================================================== | 89% | |=============================================================== | 90% | |=============================================================== | 91% | |================================================================ | 91% | |================================================================ | 92% | |================================================================= | 92% | |================================================================= | 93% | |================================================================== | 94% | |================================================================== | 95% | |=================================================================== | 95% | |=================================================================== | 96% | |==================================================================== | 97% | |==================================================================== | 98% | |===================================================================== | 98% | |===================================================================== | 99% | |======================================================================| 100%
## apart from DC, which has a disproportionate number of non-joining ZCTAs--
## seemingly corresponding to federal areas and buildings--the distribution of
## non-joining ZCTAs appears proportionate to state-level populations and is
## distributed across many states:
zctas_sf %>%
dplyr::filter(GEOID20 %in% join_quality$data_geoids_unmatched) %>%
sf::st_intersection(states_sf %>% select(NAME)) %>%
sf::st_drop_geometry() %>%
dplyr::count(NAME, sort = TRUE)
#> NAME n
#> 1 District of Columbia 19
#> 2 New York 15
#> 3 Texas 9
#> 4 California 8
#> 5 Colorado 6
#> 6 Utah 6
#> 7 Florida 5
#> 8 Pennsylvania 5
#> 9 Tennessee 5
#> 10 Virginia 5
#> 11 Alabama 4
#> 12 Arizona 4
#> 13 Kentucky 4
#> 14 Maryland 4
#> 15 Ohio 4
#> 16 Washington 4
#> 17 Georgia 3
#> 18 Louisiana 3
#> 19 Michigan 3
#> 20 North Carolina 3
#> 21 Alaska 2
#> 22 Massachusetts 2
#> 23 Mississippi 2
#> 24 North Dakota 2
#> 25 Arkansas 1
#> 26 Hawaii 1
#> 27 Idaho 1
#> 28 Illinois 1
#> 29 Indiana 1
#> 30 Iowa 1
#> 31 Kansas 1
#> 32 Maine 1
#> 33 Minnesota 1
#> 34 Missouri 1
#> 35 Montana 1
#> 36 Nebraska 1
#> 37 Nevada 1
#> 38 New Mexico 1
#> 39 Oregon 1
#> 40 South Carolina 1
#> 41 Vermont 1

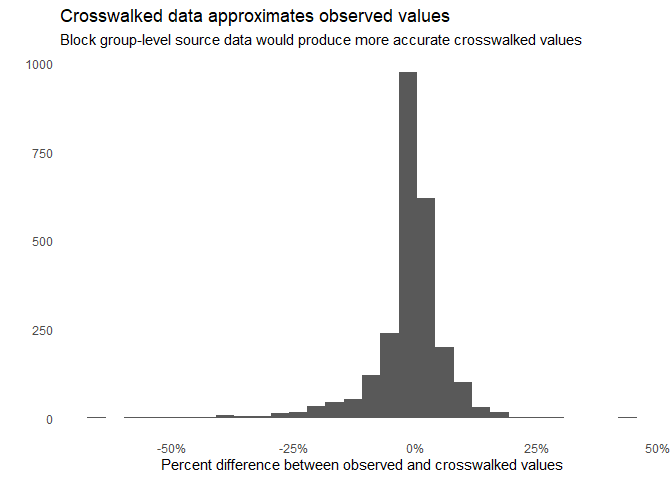

#> 42 Wisconsin 1And how accurate was the crosswalking process?
comparison_data = tidycensus::get_acs(
year = 2023,
geography = "puma",
output = "wide",
variables = c(
below_poverty_level = "B17001_002")) %>%
dplyr::select(
source_geoid = GEOID,
count_below_poverty_level_acs = below_poverty_levelE)
combined_data = dplyr::left_join(
comparison_data,
crosswalked_data,
by = c("source_geoid" = "geoid"))
combined_data %>%
dplyr::select(source_geoid, dplyr::matches("count")) %>%
dplyr::mutate(difference_percent = (count_below_poverty_level_acs - count_below_poverty_level) / count_below_poverty_level_acs) %>%
ggplot2::ggplot() +
ggplot2::geom_histogram(ggplot2::aes(x = difference_percent)) +
ggplot2::theme_minimal() +
ggplot2::theme(panel.grid = ggplot2::element_blank()) +
ggplot2::scale_x_continuous(labels = scales::percent) +
ggplot2::labs(
title = "Crosswalked data approximates observed values",
subtitle = "Block group-level source data would produce more accurate crosswalked values",
y = "",
x = "Percent difference between observed and crosswalked values")
Core Functions
The package has two main functions, though you can also specify the needed crosswalk(s) directly from crosswalk_data() and omit the intermediate get_crosswalk() call.
| Function | Purpose |
|---|---|
get_crosswalk() |
Fetch crosswalk(s) |
crosswalk_data() |
Apply crosswalk(s) to interpolate data to the target geography-year |
Understanding get_crosswalk() Output
get_crosswalk() always returns a list structured as follows:
result <- get_crosswalk(
source_geography = "tract",
target_geography = "zcta",
source_year = 2010,
target_year = 2020,
weight = "population")
names(result)
#> [1] "crosswalks" "plan" "message"
#> [1] "crosswalks" "plan" "message"The list contains three elements:
| Element | Description |
|---|---|
crosswalks |
A named list of crosswalks (step_1, step_2, etc.) of length one or greater |
plan |
Details about what crosswalks are being fetched |
message |
A human-readable description of the crosswalk chain |
Single-Step vs. Multi-Step Crosswalks
Single-step crosswalks (same year, different geography OR same geography, different year):
# Same year, different geography (Geocorr)
result <- get_crosswalk(
source_geography = "tract",
target_geography = "zcta",
weight = "population")
# result$crosswalks$step_1 contains one crosswalk
# Same geography, different year (NHGIS)
result <- get_crosswalk(
source_geography = "tract",
target_geography = "tract",
source_year = 2010,
target_year = 2020)
# result$crosswalks$step_1 contains one crosswalkMulti-step crosswalks (when a single, direct crosswalk is not available):
For some source year/geography -> target year/geography specifications do not have a crosswalk. In such cases, two or more crosswalks may be needed. The package automatically plans and fetches the required crosswalks:
- Step 1 (NHGIS): Change year, keep geography constant
- Step 2 (Geocorr): Change geography at target year
result <- get_crosswalk(
source_geography = "tract",
target_geography = "zcta",
source_year = 2010,
target_year = 2020,
weight = "population")
# Two crosswalks are returned
names(result$crosswalks)
#> [1] "step_1" "step_2"
#> [1] "step_1" "step_2"
# Step 1: 2010 tracts -> 2020 tracts (NHGIS)
# Step 2: 2020 tracts -> 2020 ZCTAs (Geocorr)Crosswalk Structure
Each crosswalk contains standardized columns:
| Column | Description |
|---|---|
source_geoid |
Identifier for source geography |
target_geoid |
Identifier for target geography |
allocation_factor_source_to_target |
Weight for interpolating values |
weighting_factor |
What attribute was used (population, housing, land) |
Additional columns may include source_year, target_year, population_2020, housing_2020, and land_area_sqmi depending on the source of the crosswalk.
Accessing Metadata
Each crosswalk tibble has a crosswalk_metadata attribute that documents what the crosswalk represents and how it was created:
metadata <- attr(result$crosswalks$step_1, "crosswalk_metadata")
names(metadata)
#> [1] "call_parameters" "data_source"
#> [3] "data_source_full_name" "download_url"
#> [5] "api_endpoint" "documentation_url"
#> [7] "citation_url" "github_repository"
#> [9] "source_geography" "source_geography_standardized"
#> [11] "target_geography" "target_geography_standardized"
#> [13] "source_year" "target_year"
#> [15] "reference_year" "weighting_variable"
#> [17] "state_coverage" "notes"
#> [19] "retrieved_at" "cached"
#> [21] "cache_path" "read_from_cache"
#> [23] "is_multi_step" "crosswalk_package_version"
#> [1] "call_parameters" "data_source" "data_source_full_name" "download_url" ...Using crosswalk_data() to Interpolate Data
crosswalk_data() applies crosswalk weights to transform your data. It automatically handles multi-step crosswalks. If you’re in a hurry, you can omit a call to get_crosswalk() and specify the needed crosswalk parameters to crosswalk_data(), which will pass these to get_crosswalk() behind the scenes.
Column Naming Convention
The function auto-detects columns based on prefixes:
| Prefix | Treatment |
|---|---|
count_ |
Summed after weighting (for counts like population, housing units) |
mean_, median_, percent_, ratio_
|
Weighted mean (for rates, percentages, averages) |
You can also specify columns explicitly via count_columns and non_count_columns. All non-count variables are interpolated using weighted means, weighting by the allocation factor from the crosswalk.
Supported Geography and Year Combinations
Inter-Geography Crosswalks (Geocorr)
2022-vintage crosswalks between any of these geographies:
- block, block group, tract, county
- place, zcta, puma22
- cd118, cd119, urban_area, core_based_statistical_area
Inter-Temporal Crosswalks (NHGIS)
NHGIS provides cross-decade crosswalks with the following structure:
Source geographies: block, block_group, tract
Target geographies: - From blocks (decennial years only): block, block_group, tract, county, place, zcta, puma, urban_area, cbsa - From block_group or tract: block_group, tract, county
| Source Years | Target Years |
|---|---|
| 1990, 2000 | 2010, 2014, 2015, 2020, 2022 |
| 2010, 2011, 2012, 2014, 2015 | 1990, 2000, 2020, 2022 |
| 2020, 2022 | 1990, 2000, 2010, 2014, 2015 |
Notes: - Within-decade crosswalks (e.g., 2010→2014) are not available from NHGIS - Block→ZCTA, Block→PUMA, etc. are only available for decennial years (1990, 2000, 2010, 2020) - The package automatically uses direct NHGIS crosswalks when available (e.g., get_crosswalk(source_geography = "block", target_geography = "zcta", source_year = 2010, target_year = 2020) returns a single-step NHGIS crosswalk)
API Keys
NHGIS crosswalks require an IPUMS API key. Get one at https://account.ipums.org/api_keys and add to your .Renviron:
usethis::edit_r_environ()
# Add: IPUMS_API_KEY=your_key_hereCaching
Use the cache parameter to save crosswalks locally for ease:
result <- get_crosswalk(
source_geography = "tract",
target_geography = "zcta",
weight = "population",
cache = here::here("crosswalks-cache"))Citations
The intellectual credit for the underlying crosswalks belongs to the original developers.
For NHGIS, see citation requirements at: https://www.nhgis.org/citation-and-use-nhgis-data
For Geocorr, a suggested citation:
Missouri Census Data Center, University of Missouri. (2022). Geocorr 2022: Geographic Correspondence Engine. Retrieved from: https://mcdc.missouri.edu/applications/geocorr2022.html
For CTData, a suggested citation (adjust for alternate source geography):
CT Data Collaborative. (2023). 2022 Census Tract Crosswalk. Retrieved from: https://github.com/CT-Data-Collaborative/2022-tract-crosswalk.
For this package, refer here: https://ui-research.github.io/crosswalk/authors.html#citation
